Product Description
Features
Specifications
Why Choose US?
Features
- Desktop Type power adapter
- Typical output: 5V 9V 12V 24V 48V
- Up to 90W continuous power
- Dimension: 133.4*53.4*38mm
- Power cable length: 1m/1.2m/1.5m/1.8m/2m are available
- DC connector: 5.5*2.1*10mm/5.5*2.5*10mm/3.5*1.35*10mm/micro head/USB C head. etc
Specifications
The Specifications of 90W 12V 7A 19V 4A 24V 3A 48V 1.5A Desktop Power Adapter |
|||
| TYPICAL MODEL | CGSW90A-120-5000II | 12V | 7000mA |
| CGSW90A-190-4000II | 19V | 4000mA | |
| CGSW90A-240-3000II | 24V | 3000mA | |
| CGSW90A-480-1500II | 48V | 1500mA | |
| INPUT | Input Voltage Range | 90V ~ 264V | |
| Efficiency | LEVEL VI | ||
| Energy Consumption | ≤0.1W | ||
| OUTPUT | Output Voltage Range | 5V-48V | |
| Output Power Range | 90W max | ||
| PROTECTION | Over-current protection, over-voltage protection, overload protection, short-circuit protection. | ||
| ESD | Air discharge | +/-8KV | |
| Contact discharge | +/-4KV | ||
| Hi-pot | 3000Vac / 10mAMax / 60S 3300Vac / 5mAMax /3S | ||
| Certifications | UL FCC CE KC PSE SAA RCM CCC CQC | ||
| Notes | Model: CGSW90A-xxx-yyyyII; CGSW90A-xxx-yyyyI
xxx means voltage050-480 yyyy means current 0010-5000 |
||

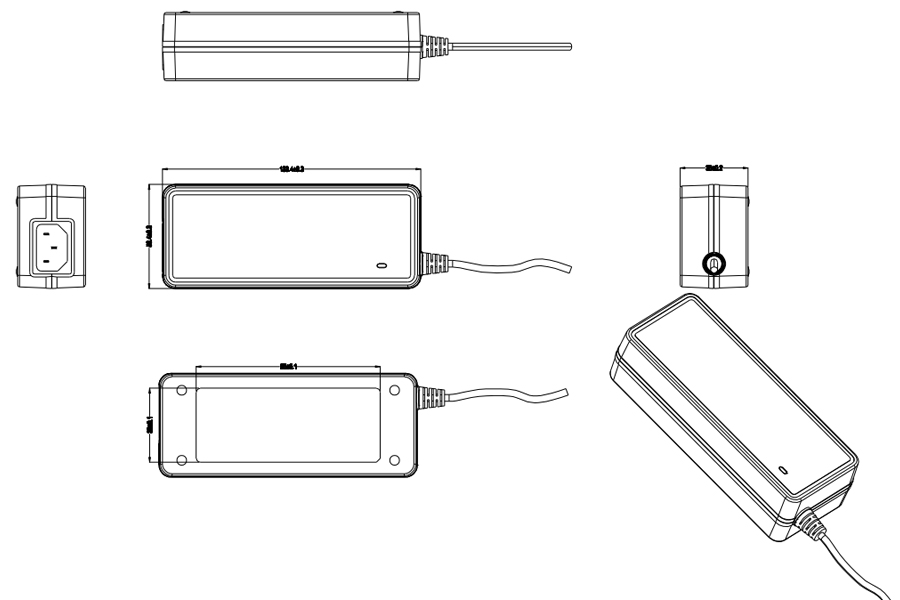

Drawing of 90W 12V 7A 19V 4A 24V 3A 48V 1.5A Desktop Power Adapter
Certifications of 90W 12V 7A 19V 4A 24V 3A 48V 1.5A Desktop Power Adapter
Why Choose US?
Profession: 12 Years’ R&D Innovation Capability, AC DC Power Adapter Manufacturer in Shenzhen China (Offer OEM & ODM Service).
Strong: 900 Employees Chinese Factory, 30 Professional R&D Engineer, 60 QC Members, Monthly Deliverability 2100000pcs.
Service: Competitive Price, Free Sample, 25 Working Days Lead Time.
Reliable: Energy Efficiency Level VI with 3 years Warranty, and CE, CB, GS, BSMI, UL, FCC, CA prop 65, SAA, RCM, NOM, PSE, KC, KCC, CCC, RoHS, REACH Certified and Class II Construction.
Comprehensive: Wall-mounted Adapter, USB Charger, Interchangeable plugs, Desktop Power Supplies, Type C charger, Quick Charger, Car Charger and Wireless Charger.
