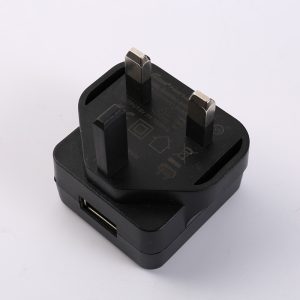

Features
- Interchangeable
- USB Port or with DC connector
- Compact size 45.5*40.9*22.9mm
- Up to 6W continuous power
- UL/FCC/CE/UKCA/SAA/CCC/PSE/KC safety approvals
- Black or white color are available
Specifications
The Specification of 6W interchangeable plug 5V 0.5A 5V 1A 9V 0.5A 12V 0.5A Wall mount Power adapters |
|||
| TYPICAL MODEL | SAW06C-050-1000zf | 5V | 1000mA |
| SAW06C-050-1200zf | 5V | 1200mA | |
| SAW06C-090-0500zf | 9V | 500mA | |
| SAW06C-120-0500zf | 12V | 500mA | |
| INPUT | Input Voltage Range | 90V ~ 264V | |
| Efficiency | LEVEL VI | ||
| Energy Consumption | ≤0.1W | ||
| OUTPUT | Output Voltage Range | 5V-24V | |
| Output Power Range | 6W max | ||
| PROTECTION | Over-current protection, over-voltage protection, overload protection, short-circuit protection. | ||
| ESD | Air discharge | +/-8KV | |
| Contact discharge | +/-4KV | ||
| Hi-pot | 3000Vac / 10mAMax / 60S 3300Vac / 5mAMax /3S | ||
| Certifications | |||
| Notes | Model: SAW06C-xxx-yyyzf
xxx means voltage050-240 yyyy means current 0010-1200 Z:G =Europe, U=America, A=Australia, J=Japan, C=China, K=korea, B=Britain F:D= output with cord; B=out put with USB port |
||

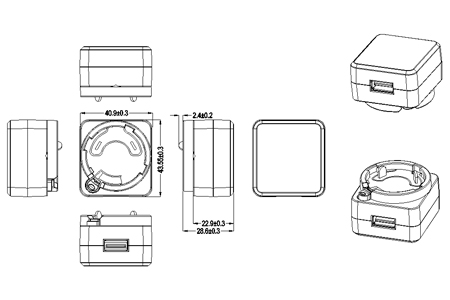

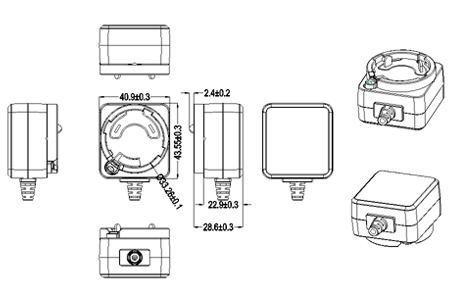

Drawing of 6W interchangeable Wall Mount Power Adapters

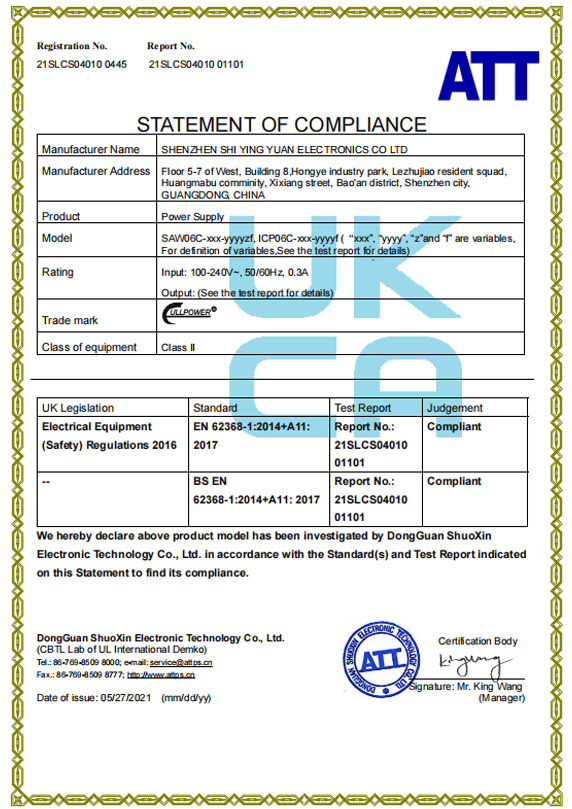

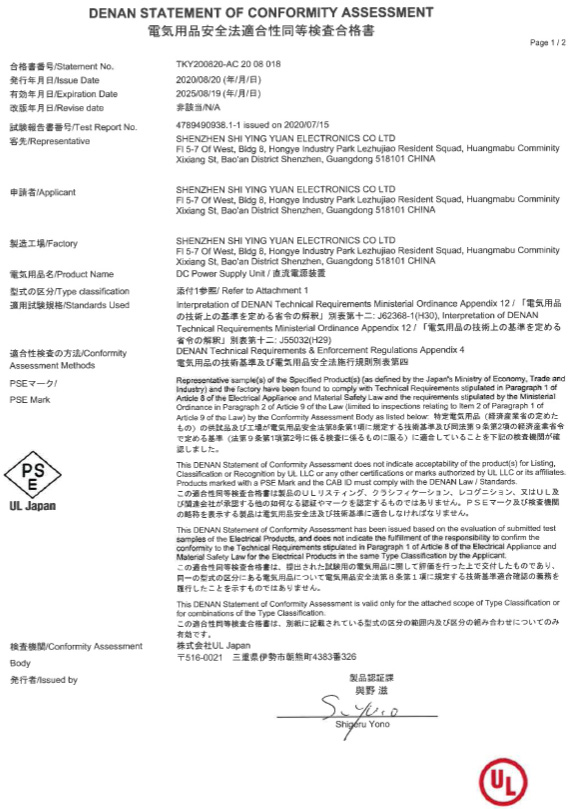

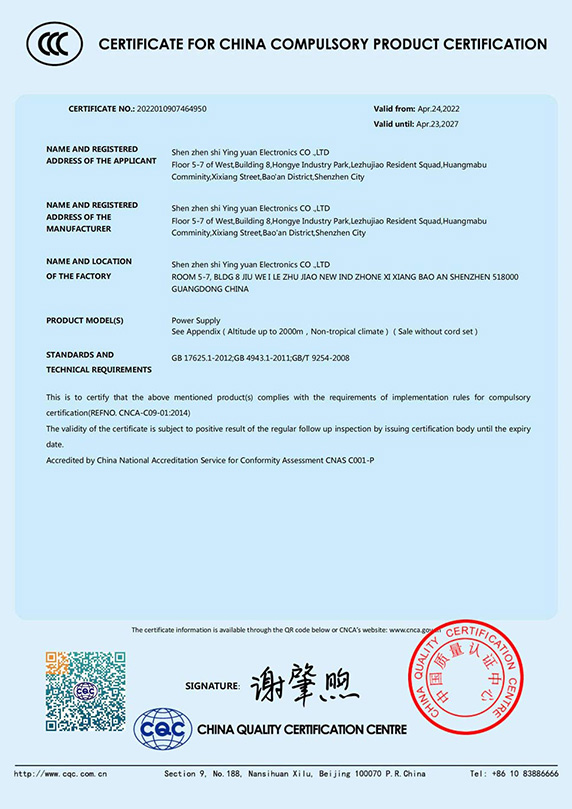

Certifications of 6W interchangeable Wall Mount Power Adapters
