Product Description
Features
Specifications
Why Choose US?
Features
- Desktop Type
- Typical output: 5V 9V 12V 24V
- Up to 65W continuous power
- Dimension: 120*51.3*33.2mm
- DC connector: 5.5*2.1*10mm/5.5*2.5*10mm/3.5*1.35*10mm/micro head/USB C head. etc
- Safety Approva: (IEC/EN62368/60335/61558) UL 1310, UL, FCC, CE, SAA, PSE, KC, RoHS, Reach
- Meet Energy Efficiency of DOE VI
Specifications
The Specifications of 65W 9V 6A 12V 5A 17V3A 19V 3.16A 24V 2.5A Desktop Power Adapter |
|||
| TYPICAL MODEL | CGSW65-090-6000II | 9V | 6000mA |
| CGSW65-120-5000II | 12V | 5000mA | |
| CGSW65-170-3000II | 17V | 3000mA | |
| CGSW65-240-2500II | 24V | 2500mA | |
| INPUT | Input Voltage Range | 90V ~ 264V | |
| Efficiency | LEVEL VI | ||
| Energy Consumption | ≤0.1W | ||
| OUTPUT | Output Voltage Range | 5V-48V | |
| Output Power Range | 65W max | ||
| PROTECTION | Over-current protection, over-voltage protection, overload protection, short-circuit protection. | ||
| ESD | Air discharge | +/-8KV | |
| Contact discharge | +/-4KV | ||
| Hi-pot | 3000Vac / 10mAMax / 60S 3300Vac / 5mAMax /3S | ||
| Certifications | UL FCC CE KC PSE SAA RCM CCC CQC | ||
| Notes | Model: CGSW65-xxx-yyyyII CGSW65-xxx-yyyyI
xxx means voltage050-480 yyyy means current 0010-7000 |
||

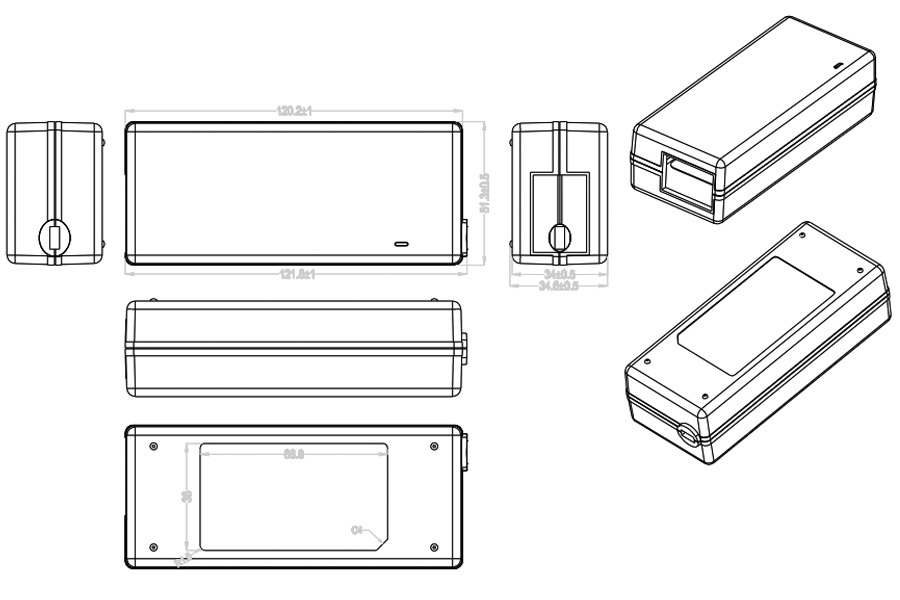

Drawing of 65W 9V 6A 12V 5A 17V 3A 19V 3.16A 24V 2.5A Desktop Power Adapter
Certifications of 65W 9V 6A 12V 5A 17V 3A 19V 3.16A 24V 2.5A Desktop Power Adapter
 |
 |
 |
 |
 |
 |
Why Choose US?
Profession: 12 Years’ R&D Innovation Capability, AC DC Power Adapter Manufacturer in Shenzhen China (Offer OEM & ODM Service).
Strong: 900 Employees Chinese Factory, 30 Professional R&D Engineer, 60 QC Members, Monthly Deliverability 2100000pcs.
Service: Competitive Price, Free Sample, 25 Working Days Lead Time.
Reliable: Energy Efficiency Level VI with 3 years Warranty, and CE, CB, GS, BSMI, UL, FCC, CA prop 65, SAA, RCM, NOM, PSE, KC, KCC, CCC, RoHS, REACH Certified and Class II Construction.
Comprehensive: Wall-mounted Adapter, USB Charger, Interchangeable plugs, Desktop Power Supplies, Type C charger, Quick Charger, Car Charger and Wireless Charger.
