Features
- China plug
- Compact size43*71*52mm
- Up to 65W continuous power
- CCC CQC Safety Approvals
- Black or white color are available
Specifications
The Specifications of 65W China plug Wall Mount Power Adapters |
|||
| TYPICAL MODEL | SAW65-090-6000C | 9V | 6000mA |
| SAW65-120-5000C | 12V | 5000mA | |
| SAW65-170-3000C | 17V | 3000mA | |
| SAW65-240-2500C | 24V | 2500mA | |
| INPUT | Input Voltage Range | 90V ~ 264V | |
| Efficiency | LEVEL VI | ||
| Energy Consumption | ≤0.1W | ||
| OUTPUT | Output Voltage Range | 5V-48V | |
| Output Power Range | 65W max | ||
| PROTECTION | Over-current protection, over-voltage protection, overload protection, short-circuit protection. | ||
| ESD | Air discharge | +/-8KV | |
| Contact discharge | +/-4KV | ||
| Hi-pot | 3000Vac / 10mAMax / 60S 3300Vac / 5mAMax /3S | ||
| Certifications | CCC CQC Safety Approvals | ||
| Notes | Model: SAW65-xxx-yyyyz
xxx means voltage050-480 yyyy means current 0010-5000 Z:G =Europe, U=America, A=Australia, J=Japan, C=China, K=korea, B=Britain |
||

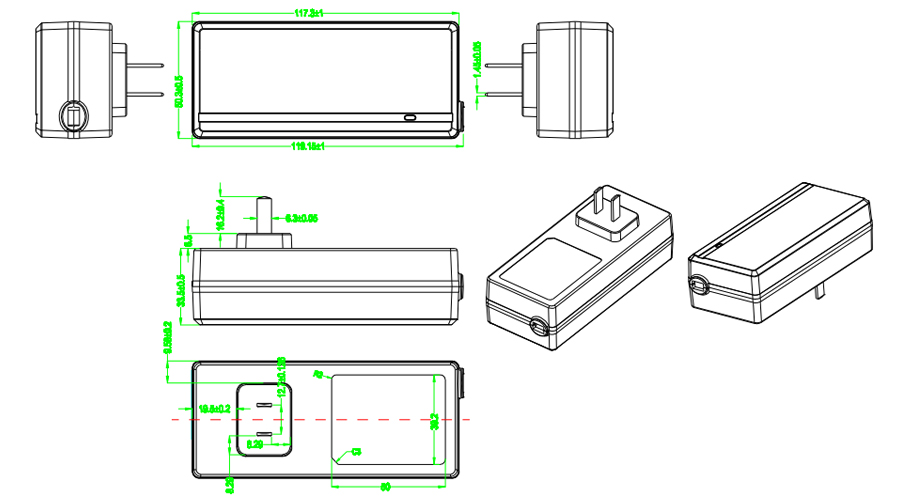

Drawing of 65W China Plug Wall Mount Power Adapters
Certifications of 65W China Plug Wall Mount Power Adapters
 |
 |
 |
 |
 |
 |
Why Choose US?
Profession: 12 Years’ R&D Innovation Capability, AC DC Power Adapter Manufacturer in Shenzhen China (Offer OEM & ODM Service).
Strong: 900 Employees Chinese Factory, 30 Professional R&D Engineer, 60 QC Members, Monthly Deliverability 2100000pcs.
Service: Competitive Price, Free Sample, 25 Working Days Lead Time.
Reliable: Energy Efficiency Level VI with 3 years Warranty, and CE, CB, GS, BSMI, UL, FCC, CA prop 65, SAA, RCM, NOM, PSE, KC, KCC, CCC, RoHS, REACH Certified and Class II Construction.
Comprehensive: Wall-mounted Adapter, USB Charger, Interchangeable plugs, Desktop Power Supplies, Type C charger, Quick Charger, Car Charger and Wireless Charger.
