You Are Here: Home / products / Power Adapter / 48W / 48W 9V 5A 12V 4A 18V 2.5A 24V 2A 48V 1A Desktop Power Adapter

48W 9V 5A 12V 4A 18V 2.5A 24V 2A 48V 1A Desktop Power Adapter

22100 Series

In stock, shipped directly

Features

  • Desktop Type power adapter
  • Typical output: 5v 9V 12V 24v
  • Up to 48W continuous power
  • Dimension: 98.1*45.4*32mm
  • Power cablelength: 1m/1.2m/1.5m/1.8m/2m are available
  • DC connector: 5.5*2.1*10mm/5.5*2.5*10mm/3.5*1.35*10mm/micro head/USB C head. etc
  • SAA RCMSafety Approva: (IEC/EN62368/60335/61558) UL 1310, UL, FCC, CE, SAA, PSE, KC, RoHS, Reach Safety Approvals
  • Meet Energy Efficiency of DOE VI
Back to list
Get free A quote
Product Description
Features
Specifications
Why Choose US?

Features

  • Desktop Type power adapter
  • Typical output: 5v 9V 12V 24v
  • Up to 48W continuous power
  • Dimension: 98.1*45.4*32mm
  • Power cablelength: 1m/1.2m/1.5m/1.8m/2m are available
  • DC connector: 5.5*2.1*10mm/5.5*2.5*10mm/3.5*1.35*10mm/micro head/USB C head. etc
  • Safety Approva: (IEC/EN62368/60335/61558) UL 1310, UL, FCC, CE, SAA, PSE, KC, RoHS, Reach
  • Meet Energy Efficiency of DOE VI

Specifications

The Specifications of 48W 9V 5A 12V 4A 18V 2.5A 24V 2A 48V 1A Desktop Power Adapter
TYPICAL MODEL CGSW48C-090-5000II 9V 5000mA
CGSW48C-120-5000II 12V 4000mA
CGSW48C-180-2500II 18V 2500mA
CGSW48C-240-2500II 24V 2000mA
INPUT Input Voltage Range 90V ~ 264V
Efficiency LEVEL VI
Energy Consumption ≤0.1W
OUTPUT Output Voltage Range 5V-48V
Output Power Range 48W max
PROTECTION Over-current protection, over-voltage protection, overload protection, short-circuit protection.
ESD Air discharge +/-8KV
Contact discharge +/-4KV
Hi-pot 3000Vac / 10mAMax / 60S   3300Vac / 5mAMax /3S
Certifications UL FCC CE KC PSE SAA RCM CCC CQC
Notes Model: CGSW48C-xxx-yyyyII

xxx means voltage050-480     yyyy means current 0010-5000

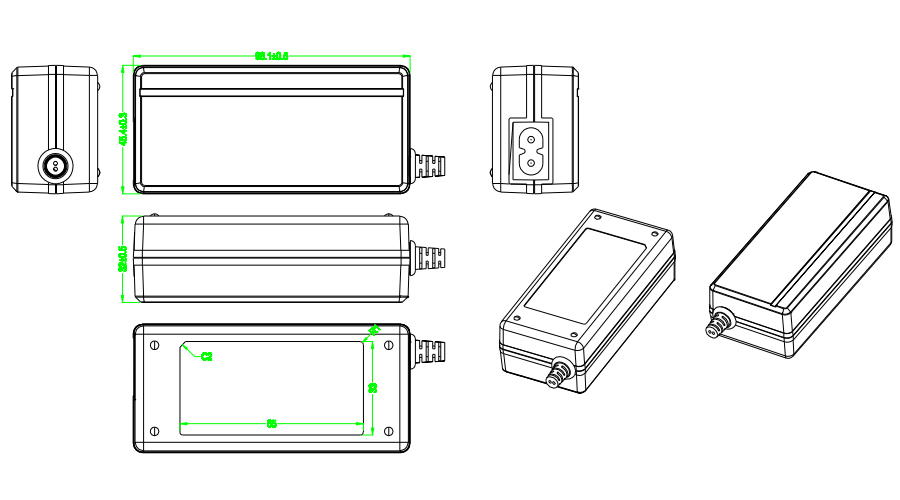

Drawing of 48W 9V 5A 12V 4A 18V 2.5A 24V 2A 48V 1A Desktop Power Adapter

Drawing of 48W 9V 5A 12V 4A 18V 2.5A 24V 2A 48V 1A Desktop Power Adapter

Certifications of 48W 9V 5A 12V 4A 18V 2.5A 24V 2A 48V 1A Desktop Power Adapters

Certificate Certificate KC Certificate Certificate RCM Certificate UL Certificate
