Features
- Compact size 97.1*45.1*32mm
- Up to 48W continuous power
- SAA RCM Safety Approvals
- Black or white color are available
Specifications
The Specifications of 48W AU Plug Wall Mount Power Adapters |
|||
| TYPICAL MODEL | SAW48C-050-5000 | 5V | 5000mA |
| SAW48C-090-5000 | 9V | 4000mA | |
| SAW48C-120-3000 | 12V | 4000mA | |
| SAW48C-180-2000 | 18V | 2000mA | |
| SAW48C-240-1500 | 24V | 200mA | |
| INPUT | Input Voltage Range | 90V ~ 264V | |
| Efficiency | LEVEL VI | ||
| Energy Consumption | ≤0.1W | ||
| OUTPUT | Output Voltage Range | 5V-48V | |
| Output Power Range | 48W max | ||
| PROTECTION | Over-current protection, over-voltage protection, overload protection, short-circuit protection. | ||
| ESD | Air discharge | +/-8KV | |
| Contact discharge | +/-4KV | ||
| Hi-pot | 3000Vac / 10mAMax / 60S 3300Vac / 5mAMax /3S | ||
| Certifications | SAA RCM Safety Approvals | ||
| Notes | Model: SAW48C-xxx-yyyyz
xxx means voltage050-480 yyyy means current 0010-5000 Z:G =Europe, U=America, A=Australia, J=Japan, C=China, K=korea, B=Britain |
||

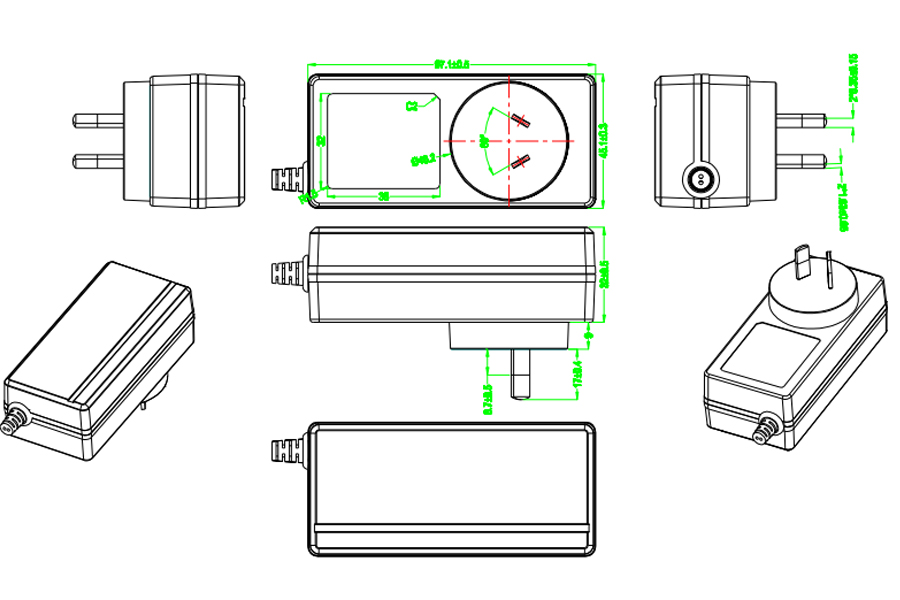

Drawing of 48W Plug Wall Mount Power Adapters
Certifications of 48W AU Plug Wall Mount Power Adapters
 |
 |
 |
 |
 |
 |
