Features
- UK plug
- Compact size 71*43*57mm
- Up to 30W continuous power
- CE, RoHS, Reach, CEC, ErP stage 2
- Black or white color are available
Specifications
The Specifications of 30W UK plug Wall Mount Power Adapters |
|||
| TYPICAL MODEL | SAW30A-050-2500ZF | 5V | 3500mA |
| SAW30A-090-2500ZF | 9V | 2500mA | |
| SAW30A-120-2000ZF | 12V | 2000mA | |
| SAW30A-240-1250ZF | 24V | 1250mA | |
| INPUT | Input Voltage Range | 90V ~ 264V | |
| Efficiency | LEVEL VI | ||
| Energy Consumption | ≤0.1W | ||
| OUTPUT | Output Voltage Range | 5V-48V | |
| Output Power Range | 30W max | ||
| PROTECTION | Over-current protection, over-voltage protection, overload protection, short-circuit protection. | ||
| ESD | Air discharge | +/-8KV | |
| Contact discharge | +/-4KV | ||
| Hi-pot | 3000Vac / 10mAMax / 60S 3300Vac / 5mAMax /3S | ||
| Certifications | CE, RoHS, Reach, CEC, ErP stage 2 | ||
| Notes | Model: SAW030A-xxx-yyyzf
xxx means voltage050-480 yyyy means current 0010-3500 Z:G =Europe, U=America, A=Australia, J=Japan, C=China , K=korea, B=Britain F:D= output with cord; B=out put with USB port |
||

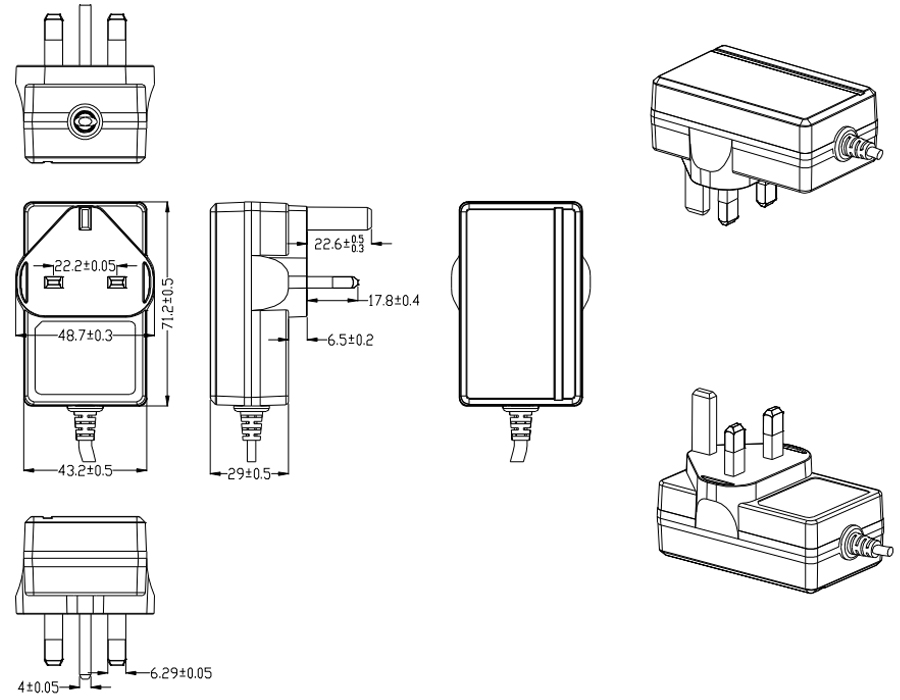

Drawing of 30W UK Plug Wall Mount Power Adapters
Certifications of 30W UK Plug Wall Mount Power Adapters
