Product Description
Features
Specifications
Why Choose US?
Features
- With US, EU, UK, AU Interchangeable plugs
- Typical output: 5V 9V 12V 24V
- Up to 30W continuous power
- Dimension: 71*43*30.5mm
- USB port or power cable outlet
- Power cable length: 1m/1.2m/1.5m/1.8m/2m are available
- DC connector: 5.5*2.1*10mm/5.5*2.5*10mm/3.5*1.35*10mm/micro head/USB C head. etc
- Safety Approval: (IEC/EN62368/60335/61558) UL 1310, UL, FCC, CE, SAA, PSE, KC, RoHS, Reach
- Meet Energy Efficiency of DOE VI
Specifications
The Specifications of 30W Interchangeable Plug Power Adapter |
|||
| TYPICAL MODEL | ICP30A-050-3500 | 5V | 3500mA |
| ICP30A-090-2500 | 9V | 2500mA | |
| ICP30A-120-2000 | 12V | 2000mA | |
| ICP30A-240-1250 | 24V | 1250mA | |
| INPUT | Input Voltage Range | 90V ~ 264V | |
| Efficiency | LEVEL VI | ||
| Energy Consumption | ≤0.1W | ||
| OUTPUT | Output Voltage Range | 5V-48V | |
| Output Power Range | 30W max | ||
| PROTECTION | Over-current protection, over-voltage protection, overload protection, short-circuit protection. | ||
| ESD | Air discharge | +/-8KV | |
| Contact discharge | +/-4KV | ||
| Hi-pot | 3000Vac / 10mAMax / 60S 3300Vac / 5mAMax /3S | ||
| Certifications | UL FCC CE KC PSE SAA RCM CCC CQC | ||
| Notes | Model: ICP030A-xxx-yyy
xxx means voltage050-480 yyyy means current 0010-3500 |
||

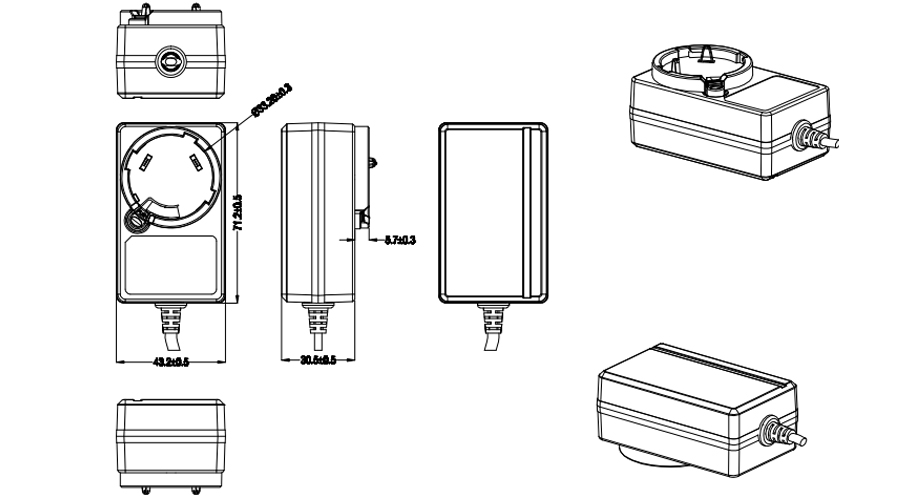

Drawing of 30W Interchangeable plug Power Adapter

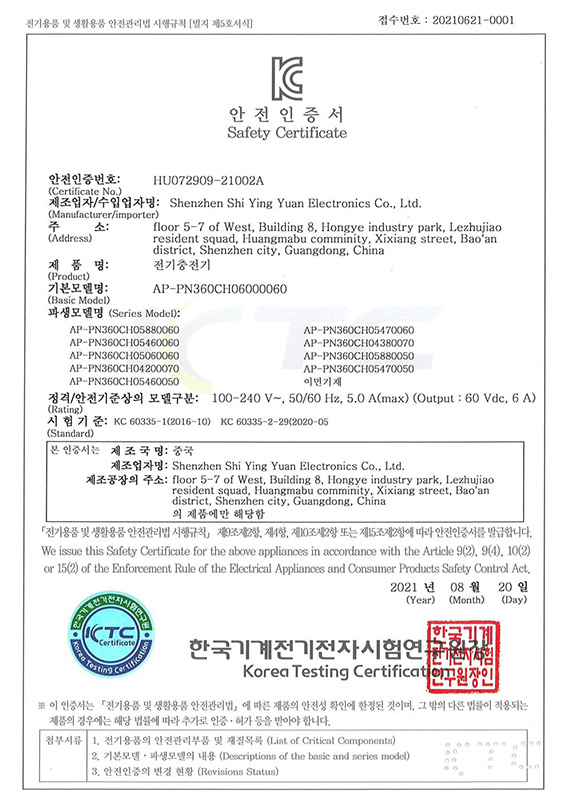

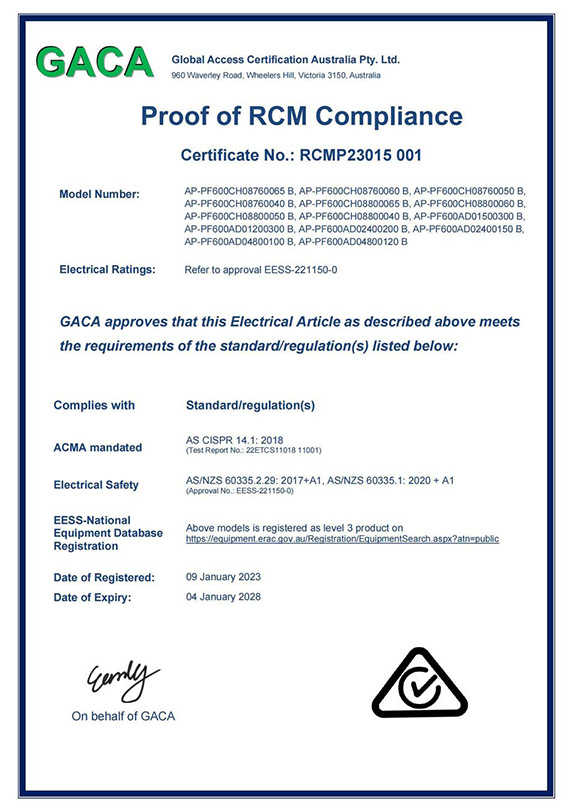

Certifications of 30W Interchangeable plug Power Adapters
Why Choose US?
Profession: 12 Years’ R&D Innovation Capability, AC DC Power Adapter Manufacturer in Shenzhen China (Offer OEM & ODM Service).
Strong: 900 Employees Chinese Factory, 30 Professional R&D Engineer, 60 QC Members, Monthly Deliverability 2100000pcs.
Service: Competitive Price, Free Sample, 25 Working Days Lead Time.
Reliable: Energy Efficiency Level VI with 3 years Warranty, and CE, CB, GS, BSMI, UL, FCC, CA prop 65, SAA, RCM, NOM, PSE, KC, KCC, CCC, RoHS, REACH Certified and Class II Construction.
Comprehensive: Wall-mounted Adapter, USB Charger, Interchangeable plugs, Desktop Power Supplies, Type C charger, Quick Charger, Car Charger and Wireless Charger.
