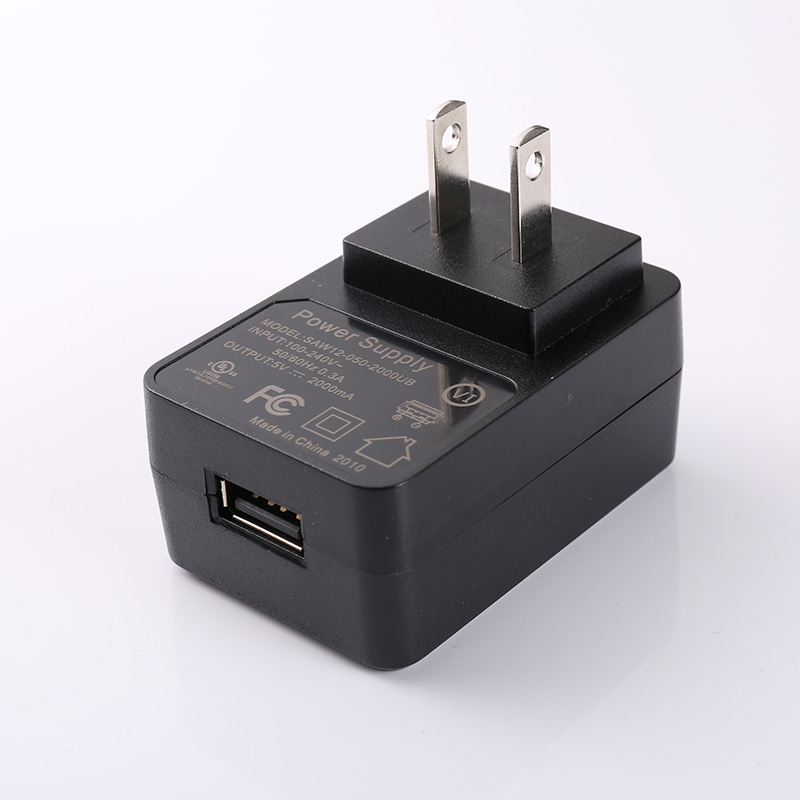

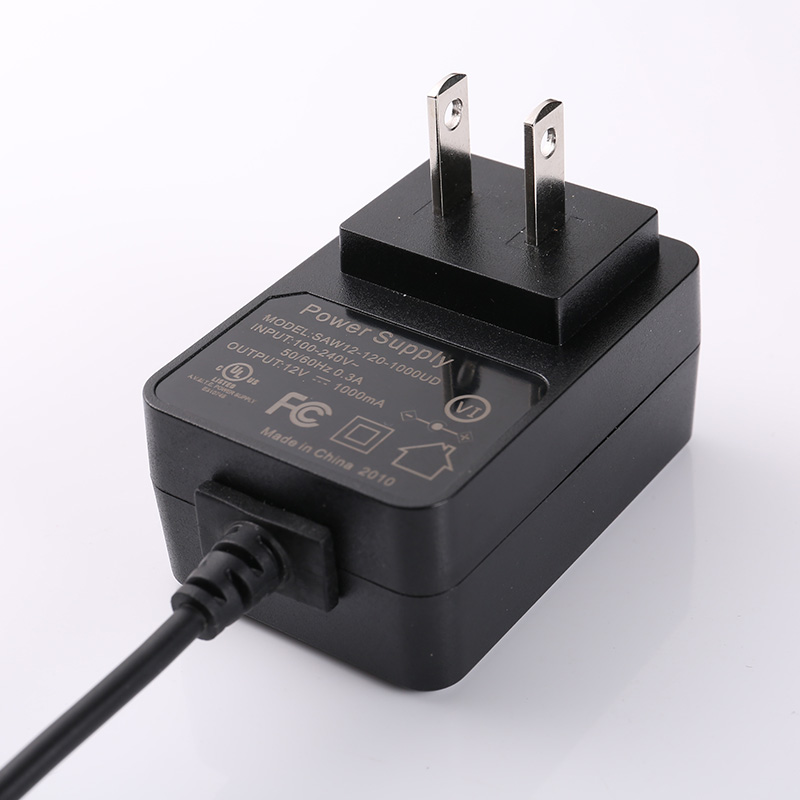

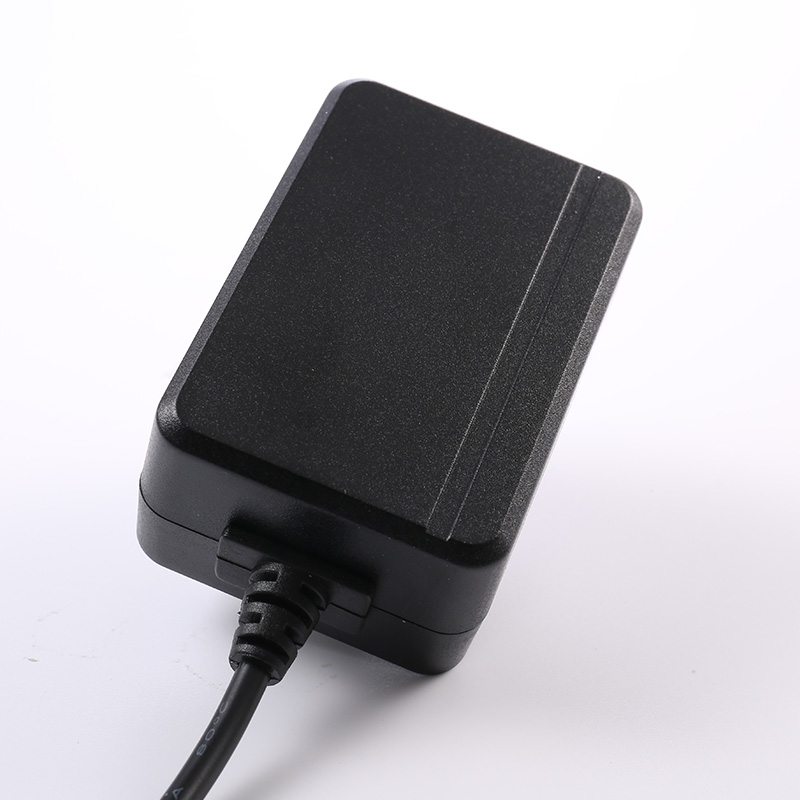

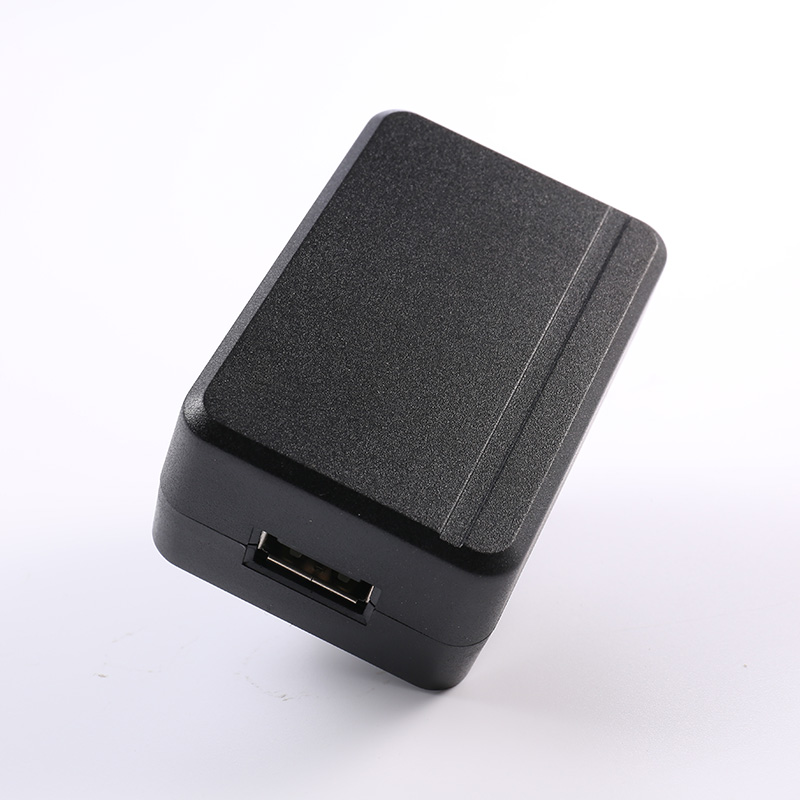

Features
- US plug
- USB Port or with DC connector
- Compact size 59*41*26.4mm
- Up to 20W continuous power
- IEC 62368-1 certified, UL, cUL, UL and UL1310 approved
- Black or white color are available
- Meet Energy Efficiency of DOE VI
Specifications
The Specifications of 20W US plug Wall Mount Power Adapters |
|||
| TYPICAL MODEL | SAW20-050-3000zf | 5V | 3000mA |
| SAW20-090-2000zf | 9V | 2000mA | |
| SAW20-110-1600zf | 11V | 1600mA | |
| SAW20-120-1500zf | 12V | 1500mA | |
| INPUT | Input Voltage Range | 90V ~ 264V | |
| Efficiency | LEVEL VI | ||
| Energy Consumption | ≤0.1W | ||
| OUTPUT | Output Voltage Range | 5V-36V | |
| Output Power Range | 20W max | ||
| PROTECTION | Over-current protection, over-voltage protection, overload protection, short-circuit protection. | ||
| ESD | Air discharge | +/-8KV | |
| Contact discharge | +/-4KV | ||
| Hi-pot | 3000Vac / 10mAMax / 60S 3300Vac / 5mAMax /3S | ||
| Certifications | Safety Approval: (IEC 62368-1) UL, FCC, UL1310, DOE VI | ||
| Notes | Model: SAW20-xxx-yyyzf
xxx means voltage050-360 yyyy means current 0010-2500 Z:G =Europe, U=America, A=Australia, J=Japan, C=China , K=korea, B=Britain F:D= output with cord; B=out put with USB port |
||

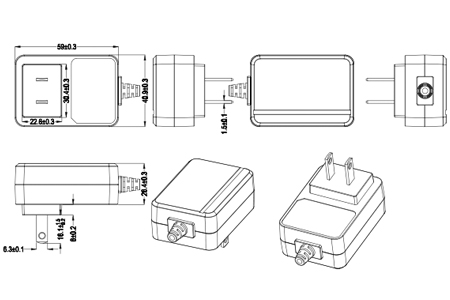

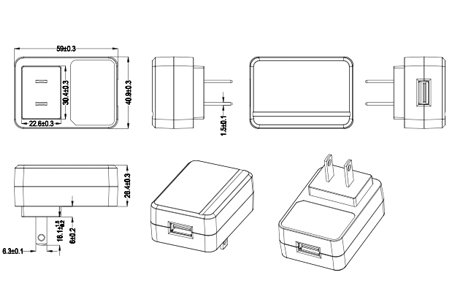

Drawing of 20W US Plug Wall Mount Power Adapters

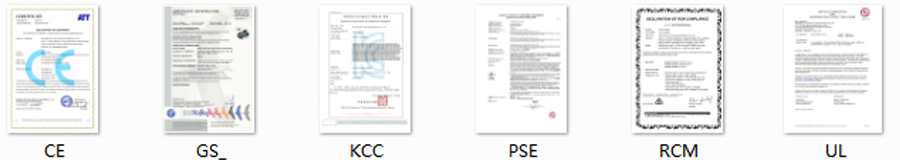

Certifications of 20W US Plug Wall Mount Power Adapters
Why Choose US?
Profession: 12 Years’ R&D Innovation Capability, AC DC Power Adapter Manufacturer in Shenzhen China (Offer OEM & ODM Service).
Strong: 900 Employees Chinese Factory, 30 Professional R&D Engineer, 60 QC Members, Monthly Deliverability 2100000pcs.
Service: Competitive Price, Free Sample, 25 Working Days Lead Time.
Reliable: Energy Efficiency Level VI with 3 years Warranty, and CE, CB, GS, BSMI, UL, FCC, CA prop 65, SAA, RCM, NOM, PSE, KC, KCC, CCC, RoHS, REACH Certified and Class II Construction.

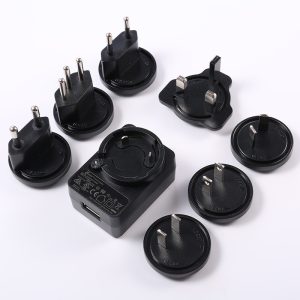

Comprehensive: Wall-mounted Adapter, USB Charger, Interchangeable plugs, Desktop Power Supplies, Type C charger, Quick Charger, Car Charger and Wireless Charger.
