Features
- Desktop Type power adapter
- Typical output: 5v 9V 12V 24V 48V
- Up to 90W continuous power
- Dimension: 172.7*72.7*33mm
- Power cablelength: 1m/1.2m/1.5m/1.8m/2m are available
- DC connector: 5.5*2.1*10mm/ 5.5*2.5*10mm/3.5*1.35*10mm/micro head/USB C head. etc
Specifications
The Specifications of 180W 12V 12.5A 24V 7.5A 36V 5A 48V 3.75A Desktop Power Adapter |
|||
| TYPICAL MODEL | CGSW150-120-12500II | 12V | 12500mA |
| CGSW150–190-12500II | 19V | 12500mA | |
| CGSW150–240-3000II | 24V | 7500mA | |
| CGSW150–480-3750II | 48V | 3750mA | |
| INPUT | Input Voltage Range | 90V ~ 264V | |
| Efficiency | LEVEL VI | ||
| Energy Consumption | ≤0.1W | ||
| OUTPUT | Output Voltage Range | 5V-48V | |
| Output Power Range | 180W max | ||
| PROTECTION | Over-current protection, over-voltage protection, overload protection, short-circuit protection. | ||
| ESD | Air discharge | +/-8KV | |
| Contact discharge | +/-4KV | ||
| Hi-pot | 3000Vac / 10mAMax / 60S 3300Vac / 5mAMax /3S | ||
| Certifications | UL FCC CE CCC | ||
| Notes | Model: CGSW150-xxx-yyyyII; CGSW150-xxx-yyyyI
xxx means voltage050-480 yyyy means current 3000-12500 |
||

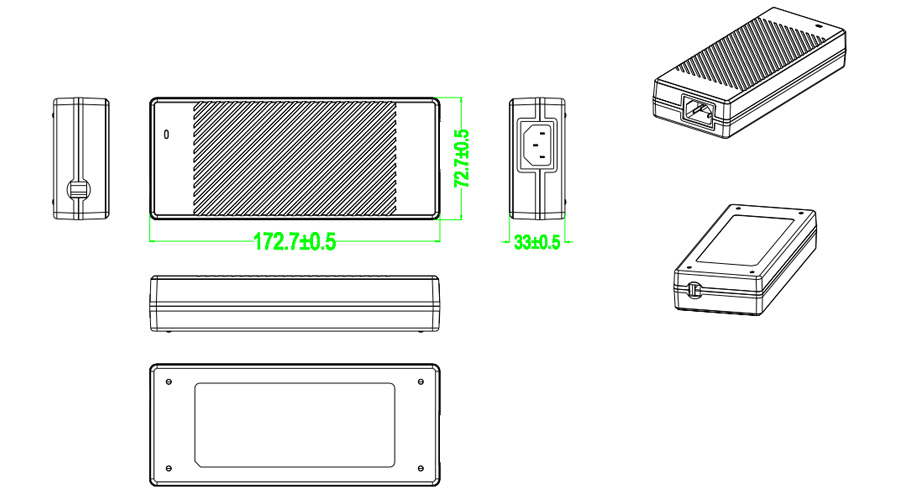

Drawing of 180W 12V 12.5A 24V 7.5A 36V 5A 48V 3.75A Desktop Power Adapter
Certifications of 120W 12V 8A 24V 5A 36V 3A 48V 2.5A 60V 2A Desktop Power Adapter
Why Choose US?
Profession: 12 Years’ R&D Innovation Capability, AC DC Power Adapter Manufacturer in Shenzhen China (Offer OEM & ODM Service).
Strong: 900 Employees Chinese Factory, 30 Professional R&D Engineer, 60 QC Members, Monthly Deliverability 2100000pcs.
Service: Competitive Price, Free Sample, 25 Working Days Lead Time.
Reliable: Energy Efficiency Level VI with 3 years Warranty, and CE, CB, GS, BSMI, UL, FCC, CA prop 65, SAA, RCM, NOM, PSE, KC, KCC, CCC, RoHS, REACH Certified and Class II Construction.
Comprehensive: Wall-mounted Adapter, USB Charger, Interchangeable plugs, Desktop Power Supplies, Type C charger, Quick Charger, Car Charger and Wireless Charger.
