Features
- US/EU/CN Plug
- USB port
- Typical output: 5V2A
- Dimension: 41.5*33.35*21.5mm
- USB port or power cable outlet
- Safety Approval: UL, FCC, CE, RoHS, Reach
- Meet Energy Efficiency of DOE VI
- Black or white color are available
Specifications
The Specification of 10W 5V 2A US EU plug USB wall charger |
|||
| TYPICAL MODEL | NA010050yyy | 5V | 2000mA |
| INPUT | Input Voltage Range | 90V ~ 264V | |
| Efficiency | LEVEL VI | ||
| Energy Consumption | ≤0.1W | ||
| OUTPUT | Output Voltage Range | 5V -24V | |
| Output Power Range | 10.5W max | ||
| PROTECTION | Over-current protection, over-voltage protection, overload protection, short-circuit protection. | ||
| ESD | Air discharge | +/-8KV | |
| Contact discharge | +/-4KV | ||
| Hi-pot | 3000Vac / 10mAMax / 60S 3300Vac / 5mAMax /3S | ||
| Certifications | Safety Approval: (IEC 62368-1) UL, FCC, CE, ROHS, Reach | ||
| Notes | Model: NA010050yyy
yyy means voltage 001-021 3 digits, indicates the output current in mA, The minimum step is 100mA. e.g: 001=100mA, 021=2100mA |
||

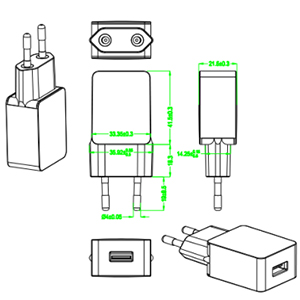

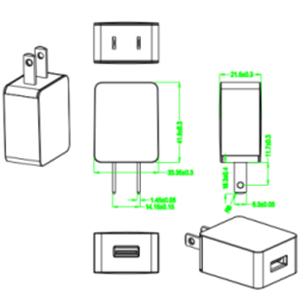

The Drawing of 10W 5V 2A US EU CN Plug USB Wall Charger
Why Choose US?
Profession: 12 Years’ R&D Innovation Capability, AC DC Power Adapter Manufacturer in Shenzhen China (Offer OEM & ODM Service).
Strong: 900 Employees Chinese Factory, 30 Professional R&D Engineer, 60 QC Members, Monthly Deliverability 2100000pcs.
Service: Competitive Price, Free Sample, 25 Working Days Lead Time.
Reliable: Energy Efficiency Level VI with 3 years Warranty, and CE, CB, GS, BSMI, UL, FCC, CA prop 65, SAA, RCM, NOM, PSE, KC, KCC, CCC, RoHS, REACH Certified and Class II Construction.
Comprehensive: Wall-mounted Adapter, USB Charger, Interchangeable plugs, Desktop Power Supplies, Type C charger, Quick Charger, Car Charger and Wireless Charger.
