Product Description
Alrightpower 100W USB C PD charger main output is 5V 3A, 9V 3A,12V 3A, 15V 3A, 20V 5A. It is with UL FCC CE certifications. It is with PD function. It can be with USB C port or can be with USB C cable. It offers fast charging for your device with compact and convenient size. It is with built-in protections which can avoid the damage of over current and over voltage. With interchangeable plug, you can use it all around the world conveniently.
Features
- Output: 5V 3A, 9V 3A, 12V 3A, 15V 3A, 20V 5A
- USB C port or with USB C head cable
- With PD function
- With fixed US blade, interchangeable plug EU, UK, AU plug
- Safety Approval: UL, FCC, CE
- Efficiency: Level VI (with CEC/ERP/DOE report)
- Super fast charging
Specifications
The Specification of 100W 5V 3A 9V 3A 12V 3A 15V 3A 20V5A USB C PD charger |
|||
| TYPICAL MODEL | TYPE-C100zf | 5V | 3A |
| 9V | 3A | ||
| 12V | 3A | ||
| 15V | 3A | ||
| 20V | 5A | ||
| INPUT | Input Voltage Range | 90V ~ 264V | |
| Efficiency | LEVEL VI | ||
| Energy Consumption | ≤0.1W | ||
| OUTPUT | Output Voltage Range | 5V, 9V, 12V, 15V, 20V | |
| Output Power Range | 100W max | ||
| PROTECTION | Over-current protection, over-voltage protection, overload protection, short-circuit protection. | ||
| ESD | Air discharge | +/-8KV | |
| Contact discharge | +/-4KV | ||
| Hi-pot | 3000Vac / 10mAMax / 60S 3300Vac / 5mAMax /3S | ||
| Certifications | Safety Approval: (IEC 62368-1) UL, FCC, UL1310, DOE VI | ||
| Notes | Model: TYPE-C100zf, TYPE100-xxx-yyyyz
Z:U=America, G =Europe, B=Britian plug, A=Austrialia plug, J =Japan plug, C=China plug, K=Korea plug. F C=Type C connector, D=with Wire |
||

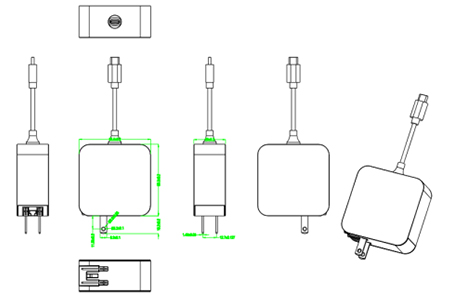

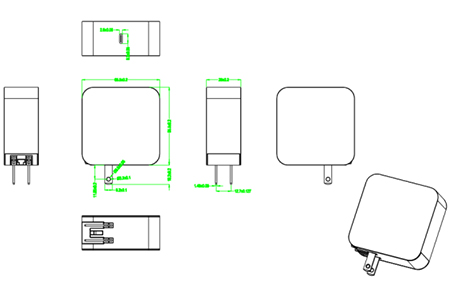

The Drawing of 100W 5V 3A 9V 3A 12V 3A 15V 3A 20V 5A USB C PD charger
